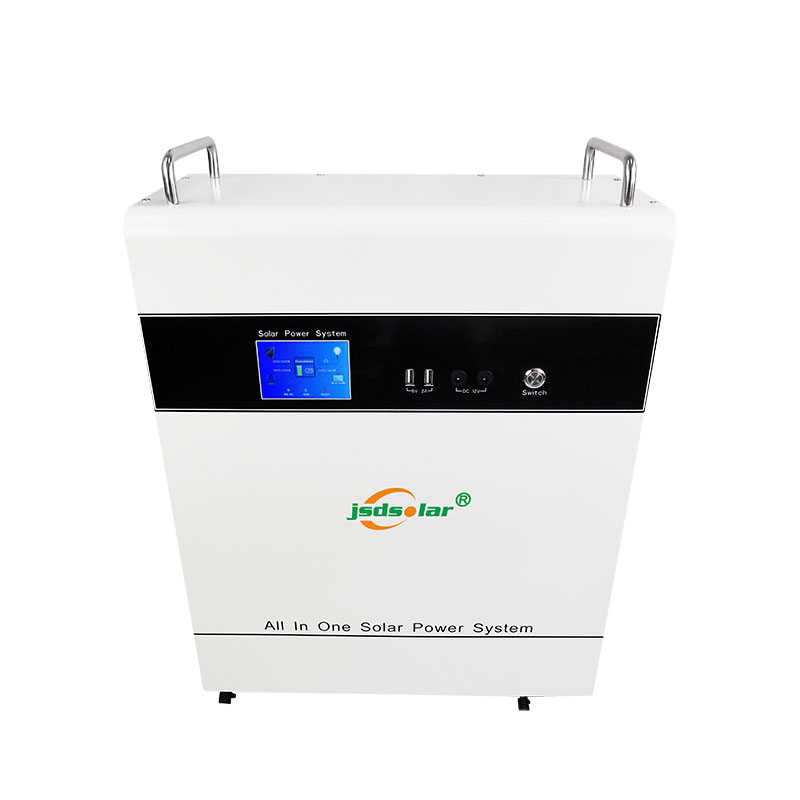

All In One 3KW Integrated Solar Energy System

JSDSOLAR JHP-3000 3KW all in one solar system has built-in inverter & MPPT charge controller & Lithium battery, and input and output socket, cooling fans, input and output protection are integrated into a box with handles and four wheels.

REQUEST A QUOTE
  • Colorful display interface
  • Touch setting screen
  • All in one design to salve complicate cable connect process
  • Portable handlebars and easy mobility wheels design
  • Charger, discharge, circuit short/open etc, protection
  • High frequency solar inverter
  • MPPT solar charge controller
  • 6000cycles LiFePO4 batteries
  • Double cooling fan to expand the lifespan
Products name All In One Solar System
Main parts Solar Inverter ,  Solar MPPT Controller , Lifepo4 Battery
Products model JHP3000
Recommended PV 1200W
Built-in battery 3072WH
PV voltage 170~280VDC
Input Input voltage 110/120/220/230VAC
Output Output voltage 110/120/220/230VAC
Output frequency 50/60Hz
Output waveform Pure sine wave
DC Output port DC Output port USB outputs *2 , 12VDC outputs*2
Output voltage 12V DC, 5V USB DC, 220V AC
Dimension LxWxH (mm) 450x195x620/450x195x620/585x240x700
Acquired certifications UL,PSE, FCC, CE, UN38.3,MSDS ,ROHS
